Prototyping Board #2: Pictures

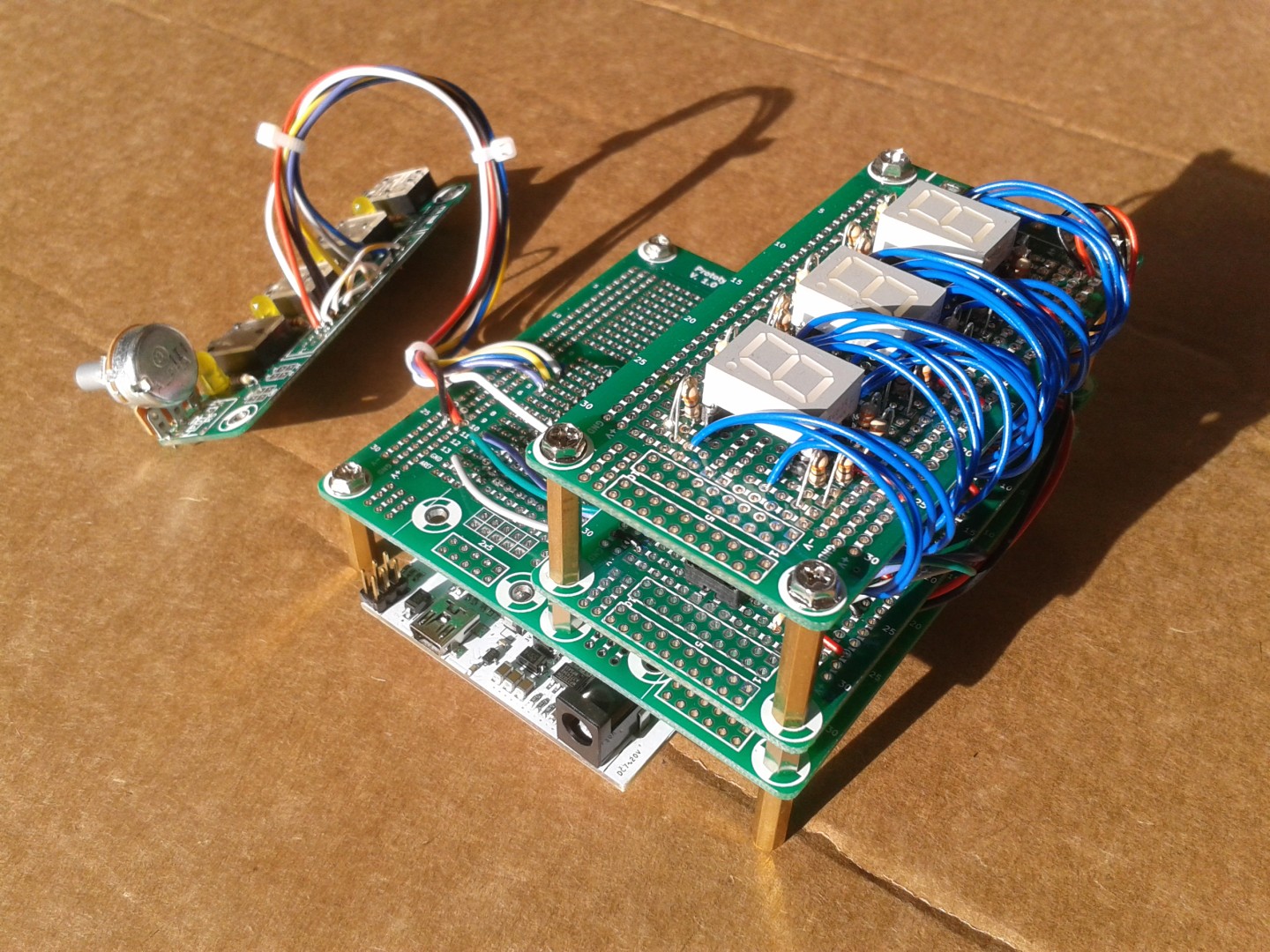

This is a prototype of the forthcoming BPM Generator Eurorack Module.
It’s constituted with:

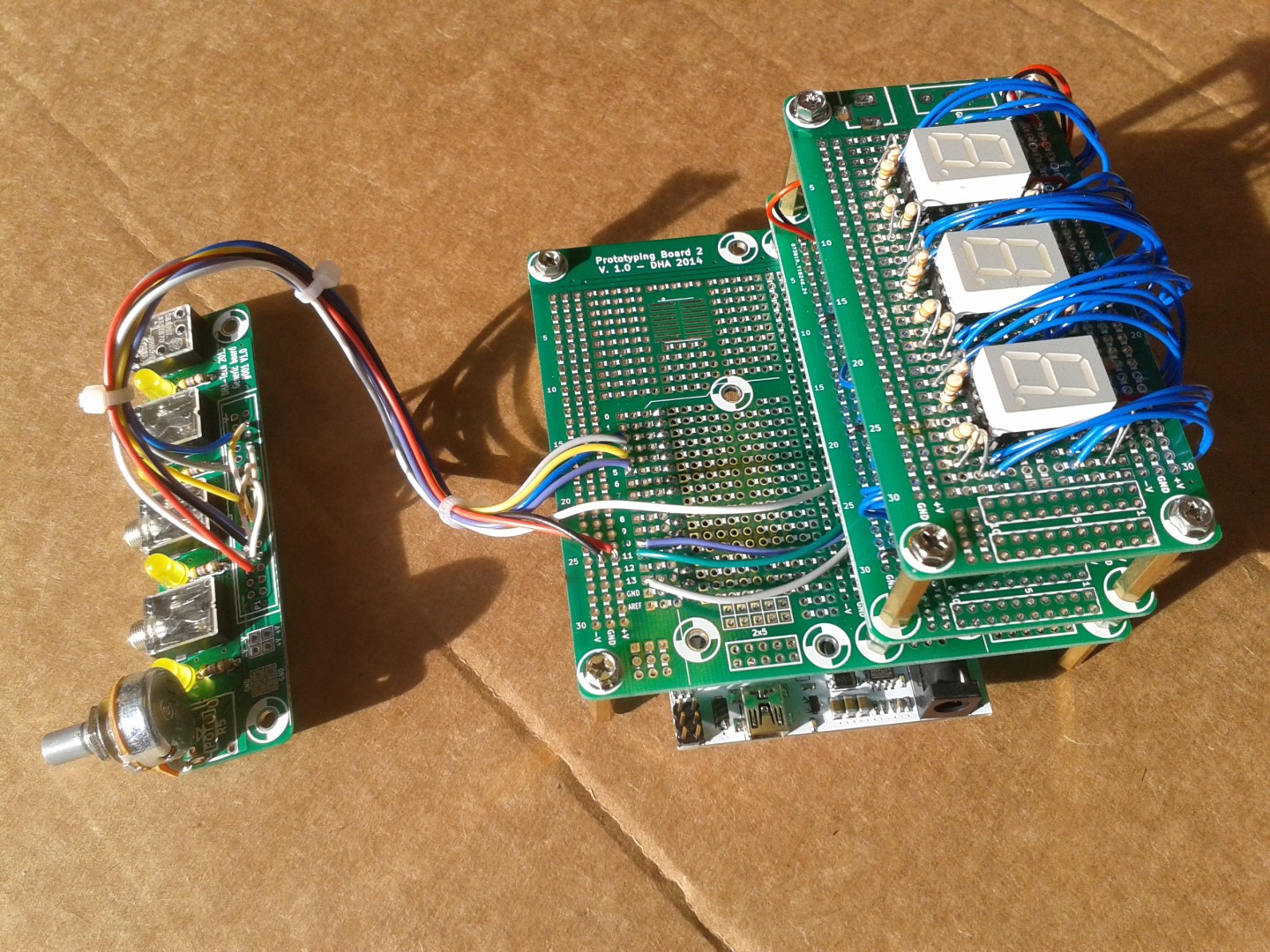

One Prototyping Board #2, two Protoboard #1, one Generic Board #1 and one Arduino.

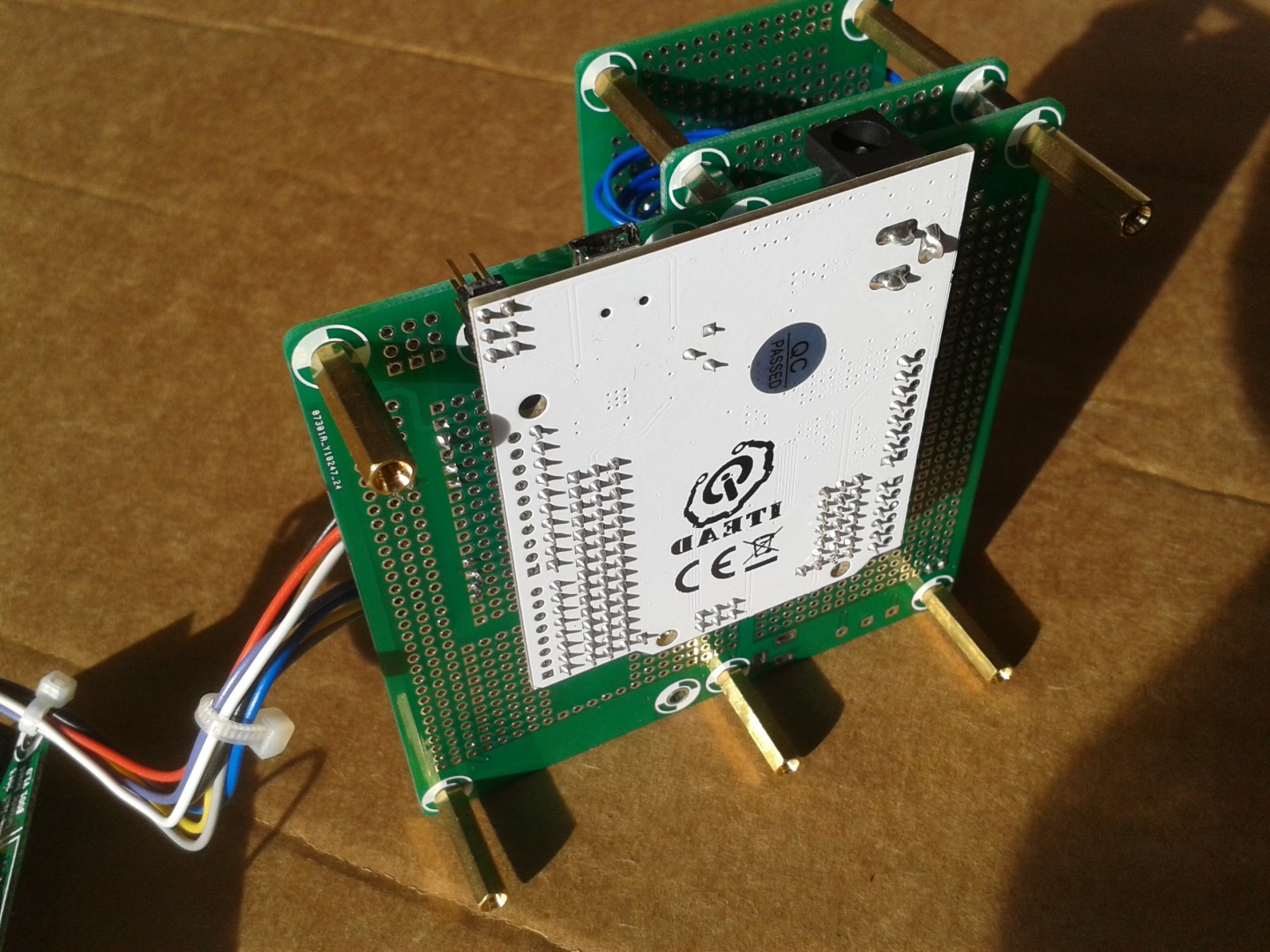

The Arduino board plugged underneath the Prototyping Board #2

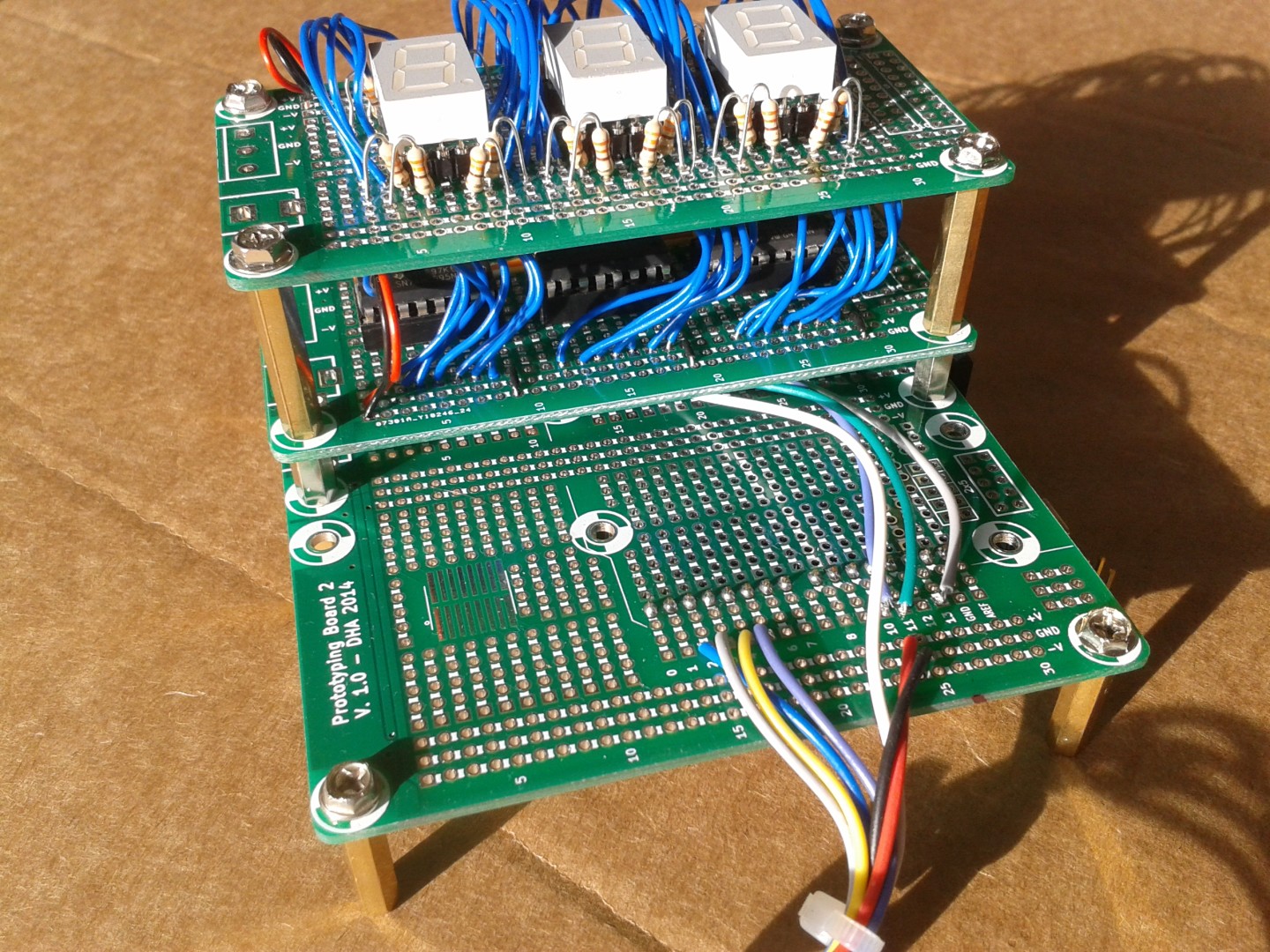

The chips in the middle.

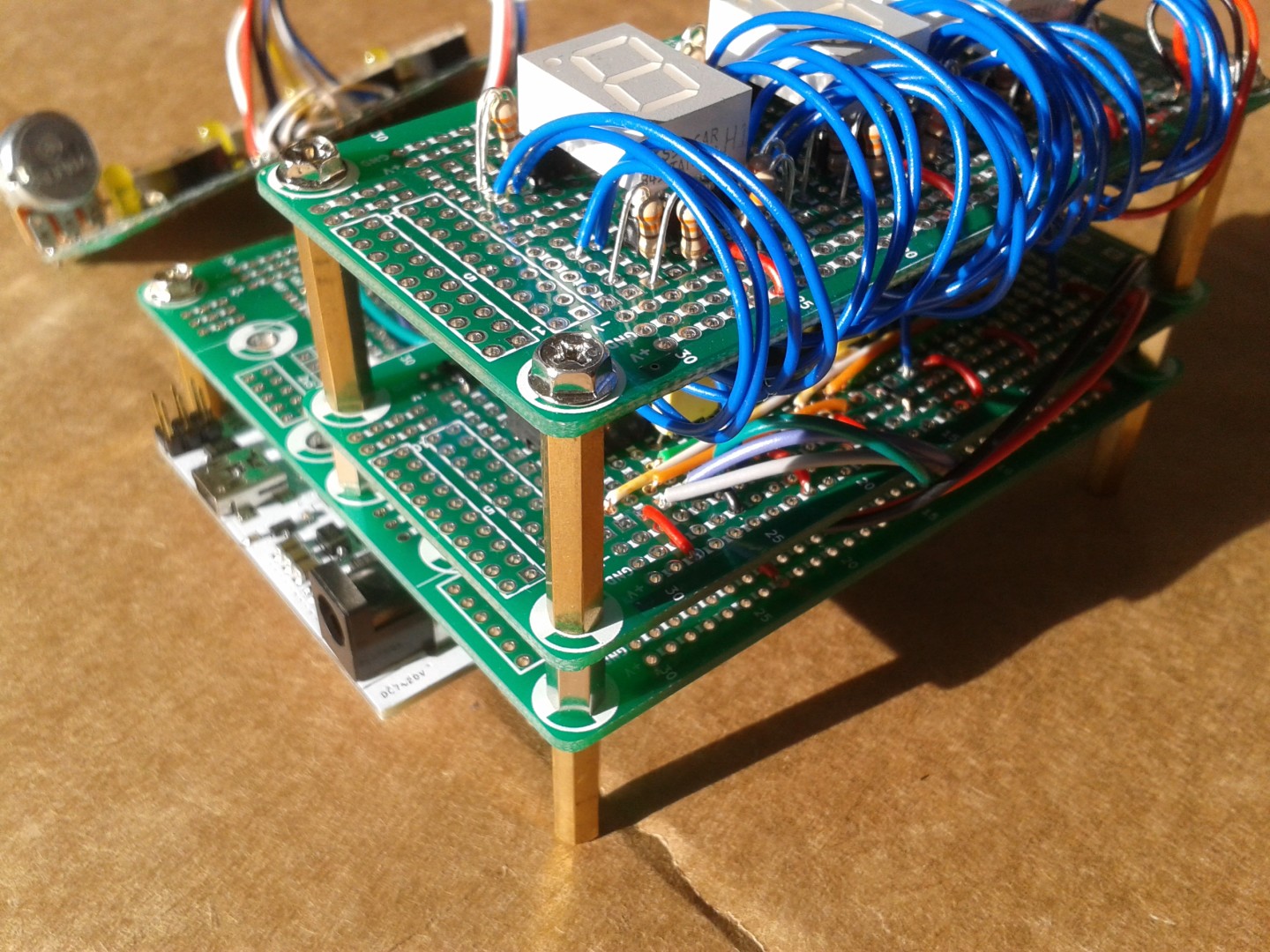

Closeup.
Easy prototyping with the Prototyping Boards. BPM Generator is on it’s way!
